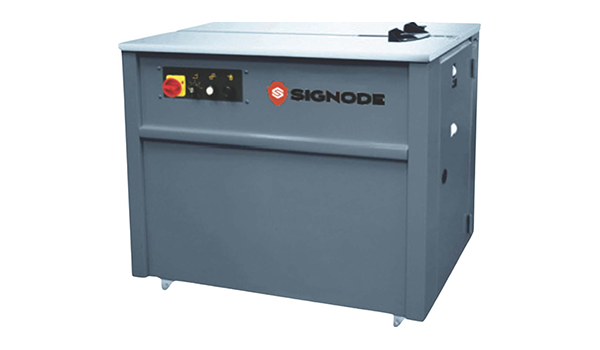

MST-N Semi-Automatic Strapping Machine
MST‑N semi‑automatic strapping machine for packaging applications, delivering reliable shape retention, operator‑friendly use, easy operation, and simple maintenance.
Shape Retention
Uniform tensioning all around
Operator Friendly
Easy to operate with simple controls
Safer Operation
Heat sealing makes it safer to operate
Simplifies Maintenance
Built with few wear parts
MST-N Semi-Automatic Strapping Machine
Upgrade packaging machinery performance with Signode MST‑N, providing uniform tensioning, easy operation, and built with a low‑wear design. This machine runs 9/12/15 mm strap in a 1.5‑sec cycle time.
Technical Specifications
| Dimensions | 905 x 575 x 780 mm |
| Power Supply | AC 220V, 50 Hz Single Phase |
| Strapping Speed | 1.5 seconds per cycle |
| Strap Width | 9, 12 and 15 mm |
| Strap Thickness | 0.4 to 0.6 mm |
| Power Consumption | Approx. 0.5 kW |
| Strap Tension | 0 to 45 Kgs |
| Strap Joint | Heat Sealing |
