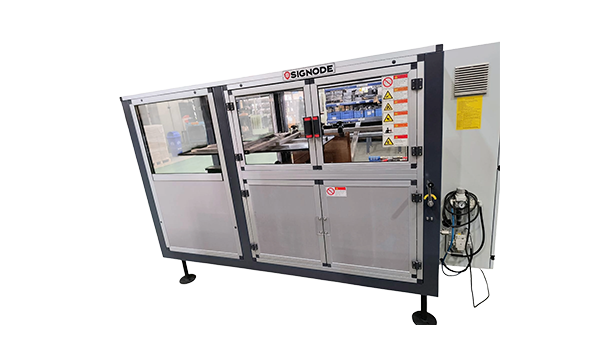

CE 12 Carton Forming Machine
A reliable high-speed carton erecting machine with flexible configurations for consistent packaging quality.
CE 12 Case Former
The CE 12 Carton Forming Machine is engineered to maximize packaging efficiency with high-speed, reliable carton erecting and sealing in a compact footprint. Designed for modern production environments, it delivers consistent performance of up to 12 cases per minute while minimizing setup time and operational complexity. With intuitive changeover features, advanced case flow technology for seamless in-line integration, and a robust chain and lug drive system for precise case squaring, the CE 12 provides superior packaging quality across a wide range of applications.
Features and Benefits
- Handles multiple carton sizes and formats
- Enclosed system with controlled mechanisms
- Quick changeover based on carton size
- Smooth integration into existing packaging lines
- Reduced carton damage due to precise handling
- Efficient tape usage and minimizes consumable wastage
- Reduces labor dependency
- Consistent output improves packaging line efficiency
Technical Specification
| Parameter | Specification |
|---|---|
| Working Speed | 0 - 12 case/min |
| Tape Width | 4.8 - 7.2cm (Bopp tape or draft paper tape) |
| Carton Size | L :250 – 530 mm W:150 – 400 mm H: 150 – 400mm ( after sealing the top and bottom flaps) H: 225 – 600mm (after folding and sealing the bottom flap) |
| Power Requirement | 0.4 Kw |
| Voltage | 1P 220V 50Hz (optional) |
| Air Supply | ≥6Kgf/cm² (~85 psi) |
| Worktable Height | 650mm (standard) – 1000mm (maximum, customer-made) |
| Noise | ≤75DB |
| Machine Size (L/W/H) | L 3045 × W 1855 × H 1300mm |
| Machine Weight | ~ 950 |
