Advanced Board Strapping Machines with Edge Protection
September 30, 2025

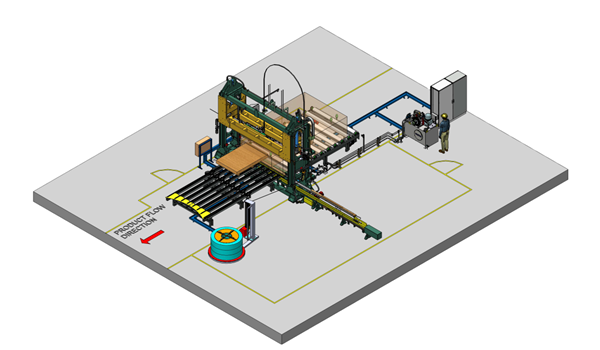

Signode has successfully commissioned five fully automatic Z30 plastic strapping machines equipped with top compression and batten feeding mechanisms for a leading board producer in Australia. This state-of-the-art system is designed to streamline the strapping process for various board types, including particle board, MDF, coated, and raw boards.
The Z30 strapping machine applies plastic straps and battens along the width of the bundles. A powerful top compression unit capable of applying up to 10 tons of pressure providing tight and stable strapping, while the automated batten feeding system supports to improve operational efficiency and reduces manual handling.
Key Highlights
- High Compression Force: Up to 10 tons of top compression
- Automated Batten Feeding: Enables seamless and consistent batten placement.
- Versatile Application: Suitable for board products and adaptable for timber packs or laminated wood bundles.
- Flexible Strapping Options: Compatible with various steel and plastic strapping heads, including M247N, Z32, Z20, AK100, AK200, KLS, and M20.
- Bundle Shapes: Designed for square or rectangular cross-sections.
Product & Batten Specifications
- Bundle Length: 1800 to 3700 mm
- Bundle Width: 1200 to 2450 mm
- Bundle Height: 150 to 1000 mm
- Batten Length: 80 to 90 mm
- Batten Width: 60 to 70 mm
- Batten Height: 1190 to 2420 mm
We are committed to delivering automated, high-performance packaging solutions tailored to the evolving needs of the global wood and board industries.
