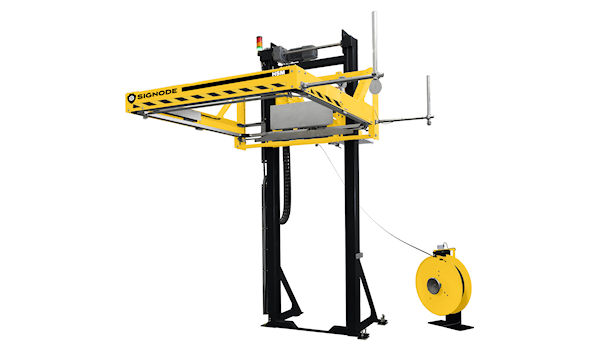

The Signode HSM strapping machine is the latest generation of horizontal strapping machines.
.png)
The Signode HSM MHC / 3000 range of strapping machines are the latest generation of horizontal strapping machines utilising the industry proven MHC and H3000 strapping heads for general, logistics and medium duty applications. The HSM features a horizontally positioned, floating strapping head making it easy to replace reducing downtime. As the arch uses a lightweight aluminum chute system and electrically driven strap guide system the HSM can provide accurate and repeatable strapping on each load whilst ensuring low total cost of ownership.
Solution Group
- Products
- Services
- Integration
- Automation
-
pack
-
bundle
-
unitize
-
warehouse
-
transport
Features and Benefits
- High reliability, durable design built for continuous operation.
- Chute design for high speed, productivity, and maximum efficiency.
- Reduced cycle time with high speed strap feed and take up.
- Compact and robust design, flexible configurations to suit most applications.
- Low operational costs, long life, wear free brushless drive motors.
Technical Specifications
HSM-3000 | HSM-MHC | |
| Strapping Head (horizontal mount) | H3000 | MHC |
| Sealing Method | Friction Weld | |
| Strap Tension | 300-3,000N | 80-900N |
| Strapping Material | Flat, Embossed Polyester, Polypropylene | Flat Polyester, Polypropylene |
| Strapping Width | 9-16mm | 9-12.5mm |
| Carriage Speed | Approximately 300mm/s | |
| Strapping Height (Minimum) | 250mm from floor 80mm from top of line | 250mm from floor 100mm from top of line |
| Strapping Height (Maximum) | 3,650mm | |
| Machine Weight | Approximately 900kg | |
| Electrical Supply (rated power) | 400VAC, 50Hz, 3Ph (1.2kva) | |
-
