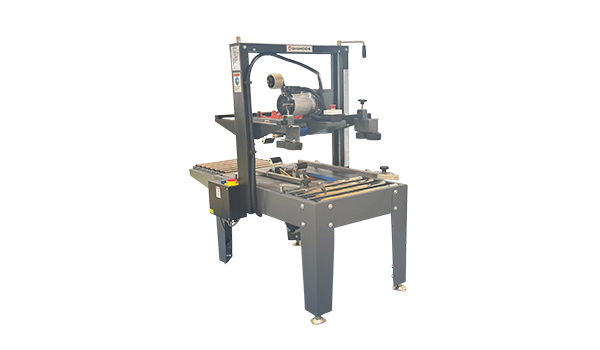

STM-NG Flexible Taping Machine
Quick Release Taping Heads
Simplified maintenance with top taping heads, easy to remove and replace, minimizing downtime
Twin Squeezing Rollers
Flawless box sealing with rollers on both sides, providing consistent pressure
Front Side Emergency Push Button
Immediate access for operators, enhancing workplace protection
Chain & Sprocket Drive System
Delivers improved performance, durability, and smoother operation
Flexible Taping Machine
The STM‑NG is built with a robust twin‑mast column for enhanced operational stability, the STM‑NG provides smooth, uniform taping across a wide range of carton sizes this includes tall, heavy, and regular boxes thanks to its positive top and bottom drive system.
Engineered for precision, this taping machine features separate top and bottom drives, delivering controlled taping pressure and superior sealing quality. The integrated twin flap‑squeeze rollers on both sides apply even, additional pressure to achieve perfect top carton alignment. Self‑centering guides provide accurate carton positioning, reducing manual adjustments and improving line throughput.
For businesses looking for a durable, scalable, and flexible taping machine that excels in precision, efficiency, and safety, the STM‑NG stands out!
| Utility Requirements | |
|---|---|
| Power | 230 VAC, 1 Phase, 50 Hz |
| Consumption | 0.4 Kw |
| Pneumatic | N/A |
| Case Dimensions | |
|---|---|
| Length (mm) | 200 to Unlimited |
| Width (mm) | 160 to 550 |
| Height (mm) | 150 with 2" & 2.5" - max. 550 |
| Weight (Kg) | 2 to 40 |
| Carton Ply | 3 & 5 |
| Technical Specifications | |
|---|---|
| Tape Head | Flexible (2", 2.5") *Optional - Standard Head (2", 2.5", 3") |
| Tape Roll Length | 65 M / 650 M / 1000 M |
| Machine Length | 1580 mm |
| Machine Width | 850 mm |
| Machine Height | 1530 mm |
| Weight | 152 Kg |
| Drive Motor | 0.25 HP, 2 No |
| Belt Speed | 20 m / minute |
| Throughput | Belt Speed / (Carton Length + 280 mm) |
Options Available
- CE Certification
- Safety guard with interlocks
- Auto On/Off enables power saving during idle time
- Digital carton counter
