Cobra® Yellow Jacket™ Orbital Wrapping Machine
Solution Group
- Products
- Services
- Integration
- Automation
-
pack
-
bundle
-
unitize
-
warehouse
-
transport
Regional Availability
Robust Construction
Steel frame structure provides efficient performance, long life and minimal maintenance.
Production Flexibility
Accommodates variable load sizes to satisfy packaging challenges.
Operator Friendly Features
Simple, intuitive push button machine controls are simple to use for operators
Optimizes Performance
Orbital Wrapping with minimal labor costs and improved line efficiency
Orbital Stretch Wrapping Machines
We provide a semi-automatic and manual unit of the Yellow Jacket orbital wrapping machine.

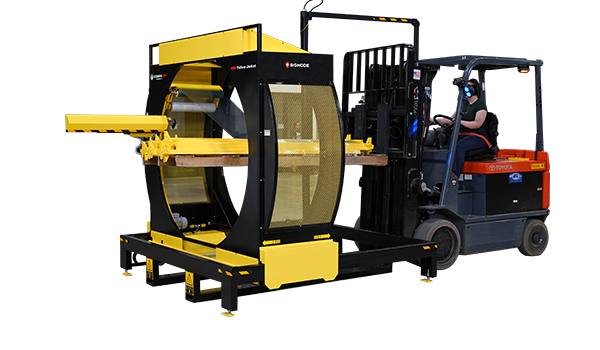

The horizontally positioned stretch wrap dispenser moves around and under the load as the Yellow Jacket wrapper is moved across the length of the load.
This process significantly cuts down on the time it takes to wrap a load by hand. Two workers will take about 10 minutes to wrap a load by hand. With the Yellow Jacket wrapping machine, one worker can wrap a similar load in 1 minute depending on the number of required film revolutions. This creates a reduction of labor costs. The Yellow Jacket orbital wrapper can also eliminate the need for other strapping materials and expensive cartons to secure loads, as the tight wrap helps to prevent the load from shifting, falling, or sliding in transit. By tightly wrapping film to the pallet, the load’s ability to shift, fall, or slide in transit is prevented.
Features and Benefits
- Film overlap and the rotational speed of the film carriage can be adjusted by means of potentiometer for optimum wrapping pattern
- Film tension can be adjusted by rotating the adjustment knob of the brake roller for improved load stability
- Full control of where to start and stop the wrapping cycle
- Machine can run up to 20 revolutions per minute
- Available as a semi-automatic or a manual model
Semi-Automatic Unit
- Operator controls the wrapping process and all machine functions from the seat of the forklift
- Joystick remote control allows for ease of use
Technical Specifications
| Machine Model | Semi-Automatic Unit | Manual Unit |
|---|---|---|
| Machine Dimensions (WxLxH) | 2300 x 2350 x 2945 mm (91" x 93" x 116") | 2300 x 2350 x 2405 mm (91" x 93" x 95") |
| Max. Load Diagonal | 1725 mm (68") | 1725 mm (68") |
| Max. Load Wrap Length | 1800 mm + 50 mm in front end load + 50 mm in back end load (70.9" + 2" + 2") | |
| Wrapping Capacity* | 15 - 25 Pallets / hour | |
| Rotation Speed | 5 - 20 rpm | |
| Power Supply | 230VAC - 1 p, 50 Hz / 16A (110VAC / 60 Hz / 16A) | |
| Operating Temperature | 5-40°Celsius / 40-100°Fahrenheit at max. relative humidity of 76% | |
| Film Type | Oriented films (7-10 my / 0.28-0.39 mil) or machine stretch film (8-30 my / 0.31-1.18 mil) in either virgin or PCR quality - available from Signode | |
*depending on pallet size and film revolutions
