Cobra® RA Rotary Arm Wrapping Machine
Solution Group
- Products
- Services
- Integration
- Automation
-
pack
-
bundle
-
unitize
-
warehouse
-
transport
Regional Availability
Maximize Throughput
Wrap up to 25 pallets per depending on load size and wrapping pattern applied
Simple for Operators
Designed to be user-friendly with straight forward controls
Optimum Wrapping
Stores different wrapping programs to streamline operation for different load types
Application Flexibility
Suitable for a variety of load types and sizes from heavy to light loads

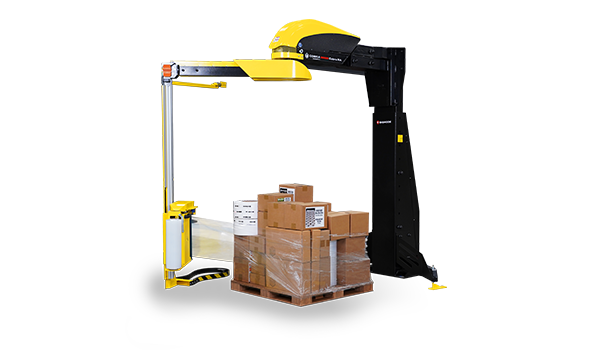

Rotary Arm Wrapping Machine
The Cobra RA machines use the rotary arm technology to rotate the stretch film carriage around the palletized load to wrap the film around it while the load remains stationary in a fixed location. Therefore, the Cobra RA machines are ideal for wrapping loads that are unstable, light, very heavy or odd-shaped.
Features and Benefits
- Consistent Performance
Film tension control throughout the wrapping cycle helps to provide a consistent performance and optimal film consumption.
- High Functionality
The Cobra RA machines feature an easy-to-use touchscreen operation allowing operators to program the number of wraps, wrapping patterns and stretch film tension. All settings can be stored into individual wrapping programs to meet the demands of multiple applications.
- Pre-Stretch Control
The Cobra RA-P comes with a Power Pre-Stretch System (PPS) for optimum packaging quality and reduced film consumption.
Product Options
Depending on the model type options are available for the Cobra RA-P and Cobra RA. These options include:
- Mechanical roping device
- Two-color lazer marking
- Obstacle detection device
Technical Specifications
| Model | Cobra RA-P | Cobra RA |
|---|---|---|
| Typical Operating Speed* | 25 pallets per hour | 25 pallets per hour |
| Load Weight | Unlimited | |
| Wrapping Height (Max.) | 2930 mm (115.3") | 2450 mm (96.5") |
| Pallet Height (Max.) | 2900 mm (114.17") | 2400 mm (94.5") |
| Pallet Dimensions (Max.) | 1400 x 1400 mm (55.1 x 55.1") | 1200 x 800 or 1200 x 1200 mm (47.2 x 31.5" or 47.2 x 47.2") |
| Total Weight | 710Kg (1565 lbs) | 400Kg (882 lbs) |
| Power Supply | 220-230VAC/50 Hz/0.8kW/16A 110-120VAC/60 Hz/1.34HP/16A | 220-230VAC/50 Hz/0.55kW/16A 110-120VAC/60Hz/1HP/16A |
| Room Temperature | 5 - 40°Celcius (41 - 104 °Fahrenheit) | |
| Emission Sound | < 70 dB (A) | |
| Film Type | Machine stretch films (8-30 my / 0.31-1.18 mil)** | Oriented films (6-8 my / 0.24-0.31 mil) or machine stretch films (8-30 my / 0.31-1.18 mil)** |
Virgin or PCR quality – available from Signode | ||
| Reel Width (Max.) | 500 mm (19.68") | 375-500 mm (14.74-19.68") |
| Film Roll Ø (Max.) | 250 mm (9.84") | 300 mm (11.81") |
| Film Carriage | PPS Power Pre-Stretch | Mechanical/Electro-magnetic brake |
*Depending on pallet height and number of wraps.
**Depending on used pre-stretch and film thickness.
