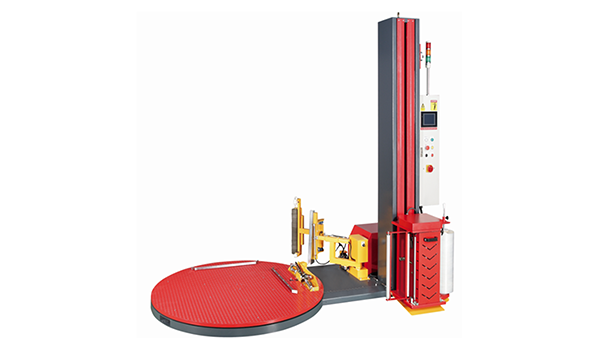

Predator Fully Automatic Cut & Wipe “Offline” Stretch Wrapping Machine

Predator Fully Automatic Cut & Wipe “Offline” Stretch Wrapping Machine
The Signode Predator Cut & Wipe Model is designed for high-volume fully automatic "offline" operations that require speed, consistency, and minimal operator involvement. With a fixed 200% pre-stretch system, every meter of film becomes three meters of wrap, reducing costs while maintaining load integrity.
The turntable has a capacity of 2,000 kg and a maximum wrap height of 2.1 meters, providing a complete wrapping solution. The automatic cut-and-wipe system, operated by a handheld remote control, streamlines the wrapping process, while the advanced HMI touch panel allows for precise control. Operators can be trained in under 15 minutes, and risk assessments are provided with each Predator machine. The Predator is equipped with a height sensor, making it suitable for random height pallets and allowing the use of clear or black film.
This machine is ideal for "A Class" loads with solid sides and combines industrial-grade reliability with user-friendly automation.
Features & Benefits
- 200% Fixed Pre-Stretch System: Maximizes film usage efficiency, turning 1m of film into 3m of wrap.
- Automatic Cut & Wipe Function: Reduces operator interaction and speeds up cycle completion.
- Handheld Remote Control: Industrial-grade remote allows easy operation from a distance.
- Advanced Touch Panel Interface: HMI with Mitsubishi FX-IN PLC for precise and intuitive control.
- Auto Height Sensing: Automatically adjusts wrap height with customizable top & bottom wrap counts.
- Quick-Load Film Carriage: Easy-load system simplifies film changes and reduces downtime.
- Heavy-Duty Performance: Supports up to 2000 kg with adjustable turntable and carriage speeds.
Technical Specifications
Specifications | Fully Automatic Cut & Wipe “Offline” Stretch Wrapping Machine |
---|---|
Power | 240 volts 1 phase 50 Hz |
Turntable Diameter | 1650 mm |
Turntable capacity | 2000 Kg |
Maximum Wrap Height | 2600 mm |
Film Carriage Speed | 2 ~ 5 meter per min (adjustable) |
PE Film Spec | Machine grade film |
Turntable Height | 97 mm |
Turntable Speed | Adjustable 5 to 15 rpm |
