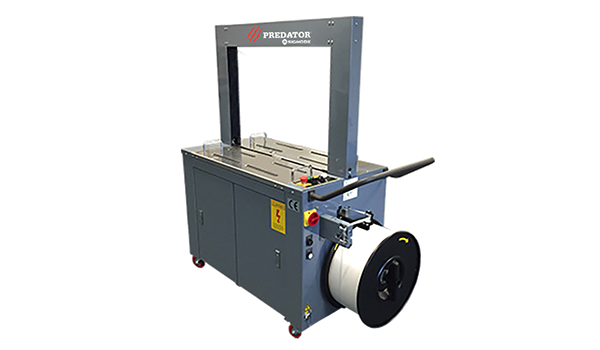

Predator 12 Painted Automatic Strapping Machine

Predator 12 Automatic Strapping Machine
The Signode Predator 12mm is an automatic strapping machine with a painted finish, capable of applying up to 30 straps per minute. It features automatic strap loading that takes less than 10 seconds. The roller table top facilitates easy product movement. The strap can be activated using a foot pedal, a table top sensor, or a button on the control panel. High mechanical tension can be adjusted up to 45 kg.
Features & Benefits
- 30 straps per minute (dependent on carton size)
- Automatic strap loading
- Automatic cut & refeed
- Safety switches on all doors
- Heavy duty locking castors
- Automatic strap eject for coil changes
- Mechanical tension adjustment up to 70kg
Technical Specifications
Specifications | Predator 12 Painted |
---|---|
Arch Size | 850mm (width) x 600mm (height) |
Strap Size | 12mm x 3,000m |
Power | 240 volts 1 phase 50 Hz |
Table Height | 814mm |
Machine Dimensions | 1,421mm(L) x 606(W) x 1540(H)mm |
Tension Range | Adjustable from 5-70 Kgs |
Max & Min Package Size | Min 100mm(W) x 30mm(H); Max 850mm(W) x 600mm(H) |
Strapping Speed | 30 straps per min (depending on carton size) |
