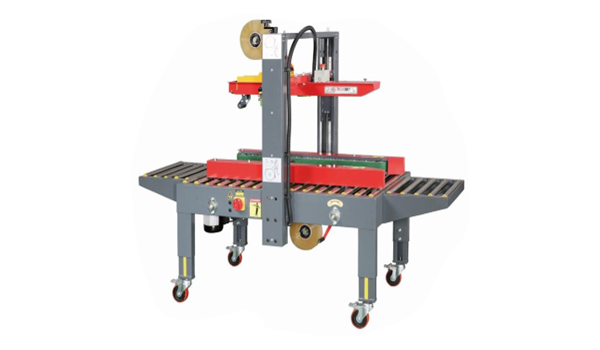

Predator PW-553 S Uniform Carton Sealer
Uniform Case Sealing
Ideal for use with uniform boxes.
Side Belt Drive System
Provides smooth and reliable box movement during sealing.
Customizable Model
Adjustable table height for operator friendliness
Tape Compatibility
Supports 2" OPP tape with a standard 40±5mm overlap
Predator PW-553 S Painted Uniform Carton Sealer
Signode Predator PW-553 S comes in both painted and stainless steel finishes. It's designed specifically for uniform box sizes and features a top and bottom sealer with a side belt drive system that can accommodate either 48mm or 72mm machine tape.
It also includes an entry and exit gravity conveyor. The PW553 SS option, made of Type 304 Grade stainless steel, is capable of handling corrosive environments commonly found in the food and meat processing industries.
Built for durability and precision, this machine offers consistent sealing with minimal manual adjustments, making it ideal for busy production lines. This model ensures consistent sealing quality, reduces manual errors, and enhances packaging presentation. It supports a wide range of box sizes and weights, is designed to be user-friendly, and provides reliable performance using high-quality components, which results in minimal downtime.
Features & Benefits
- Adjustable Width & Height: Easily adapts to various box sizes for flexible operation.
- Side Belt Drive System: Provides smooth and consistent box movement during sealing.
- Side Rollers for Squaring: Keeps boxes aligned for precise and professional sealing.
- Top & Bottom Taping Head (48mm): Applies tape securely to both top and bottom flaps.
- Adjustable Table Height (570mm–770mm): Customizable to fit different working environments.
- Sturdy Mast & Strong Construction: Built for durability and long-term industrial use.
- Dual Side Belt Drive: Provides stable and reliable box transport.
- Extension Rollers Included: Two rollers (L370 x W530 mm) for easier box handling.
Technical Specification
| Specification | Detail |
|---|---|
| Power Supply | 240V, Single Phase 50/60Hz |
| Drive System | Two Side Belt Drive |
| Tape Type | OPP Tape, 2" Width |
| Belt Speed | 20m per min at 50Hz |
| Table Height | Adjustable from 570 to 770 mm |
| Sealing Size | L150mm ~ ∞ x W120–500mm x H85–500mm |
| Loading Capacity | Up to 30Kg |
