Semiconductor Conveyors

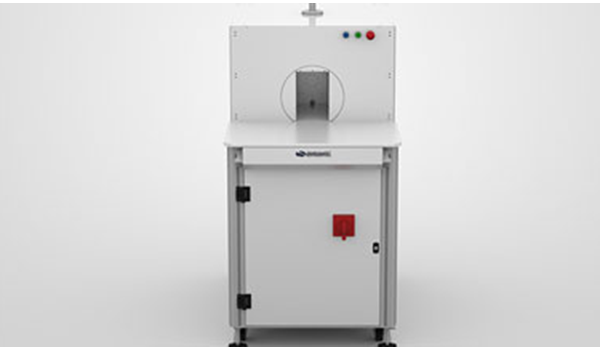

JEDEC Tray Flipper

We provide a fully automated solution for flipping a stack of JEDEC trays on the long axis of the tray. The unit helps maintain employee ergonomics through the minimizing of manual tray handling of standard 12.7’’ (322.6 mm) x 5.35’’ (136 mm) trays.

The system flips trays before or after bottom-side/dead-bug processing and is controlled by two switches on the machine’s sides to ensure operator safety. The system also features a light tower and alarms to signal any errors. JEDEC trays are secured from the side, top, and bottom to prevent slipping or falling from the slot. The machine can also handle short or tall stacks with no additional operator setup or intervention.

Additional Solutions

Micro Magazine Loader

Micro Magazine Unloader

Tray Stacker / Destacker

Available for use with semiconductor conveying are loaders, unloaders and tray stacker. Our micro magazine loaders, micro magazine unloaders will introduce the product from a magazine onto a manufacturing line and visa versa.

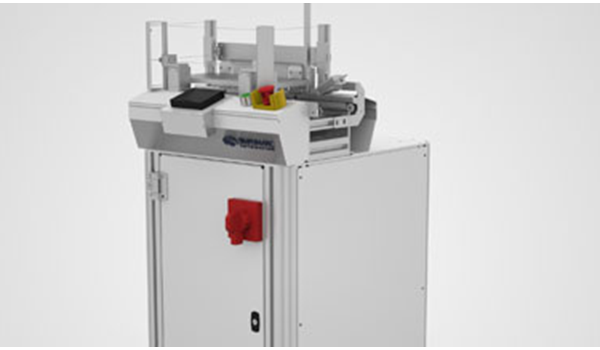

The tray stacker / destacker is a fully automated solution, designed to carefully stack and unstack electronic trays at the beginning and end of an electronics production line. All systems can be configured to handle custom sizes. This machine is available in a single lane or dual lane configuration and is the ideal JEDEC tray handling solution for any electronics manufacturer.

Features & Benefits

• Solid belt construction manufactured from fiberglass-reinforced transmission
• Reliable stepper motors allowing for precise adjustments
• Premium rail design as conveyor features zero gaps between belt and edges to eliminate jams
• PLC options and can be configured for smart industry 4.0 communication

All our systems are designed according to your required specifications, reach out to our team to find out how we can integrate conveyor systems to improve PCB handling systems.
