Apply packaging labels with Signode's robotic label applicator.
Robotic Label Applicator
Robotic Label Applicator

Robotic Label Applicator

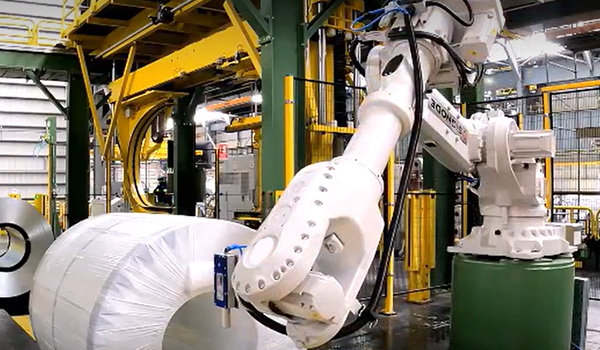

The Robotic label applicator can apply 3 to 4 Labels on wide width coils. Robot applicator picks the label from label printer and applies it after determining the right Label position. Typically, Labels are applied on:

a. Outer Diameter of the Coil at 12 o’clock.

b. Inner Diameter between 3 & 9 o’clock.

c. 1 on side face of the coil between 9 & 12 o’clock position facing the robot and within reach of robot arm. 2nd on opposite side faces between 12 & 3 o’clock when the coil moves to next station.

Solution Group

  • Products
  • Services
  • Integration
  • Automation
  • pack
  • bundle
  • unitize
  • warehouse
  • transport

Features and Benefits

  • Make it easier to identify different coils
  • Improve productivity with this automated robotic solution
  • It is possible to apply labels onto various materials. Labels based on Paper, Polypropylene, Polyester, Vinyl stock etc. and can be coupled with RFID for enhanced value to Customer.

Technical Specifications

DescriptionParameter
Cycle Time180 Seconds for full application of 3 labels per coil

Coil Size (OD = 1900mm, ID = 508mm, Width = 1800mm)
Ambient Temperature0 to 45 Degrees Celsius
Control PanelTo be housed inside an Air-conditioned environment. AC and Electrical control room by customer
Control Voltage24V DC
Air Pressure6 Bar at top


This product is highly customisable and performance will depend on the choices made for your business, make sure to get in touch to find out about this product.
